First diagnosis of multisystem inflammatory syndrome in children (MIS-C): an analysis of PoCUS findings in the ED

Abstract

Children with multisystem inflammatory syndrome (MIS-C) tend to develop a clinical condition of fluid overload due both to contractile cardiac pump deficit and to endotheliitis with subsequent capillary leak syndrome. In this context, the ability of point-of-care ultrasound (PoCUS) to simultaneously explore multiple systems and detect polyserositis could promote adequate therapeutic management of fluid balance. We describe the PoCUS findings in a case-series of MIS-C patients admitted to the Emergency Department. At admission 10/11 patients showed satisfactory clinical condition without signs and symptoms suggestive for cardiovascular impairment/shock, but PoCUS showed pathological findings in 11/11 (100%). In particular, according to Rapid Ultrasound in SHock (RUSH) protocol, cardiac hypokinesis was detected in 5/11 (45%) and inferior vena cava dilatation in 3/11 (27%). Peritoneal fluid was reported in 6/11 cases (54%). Lung ultrasound (LUS) evaluation revealed an interstitial syndrome in 11/11 (100%), mainly localized in posterior basal lung segments. We suggest PoCUS as a useful tool in the first evaluation of children with suspected MIS-C for the initial therapeutic management and the following monitoring of possible cardiovascular deterioration.

Introduction

Multisystem inflammatory syndrome (MIS-C) is a newly defined severe pediatric illness related to previous SARS-CoV-2 infection [1]. The clinical presentation is usually nonspecific and features of MIS-C overlap with those of many other pediatric conditions. Most children present to the Emergency Department (ED) with common symptoms, such as fever and abdominal pain, in some cases associated with Kawasaki-like signs [2]. Nevertheless, MIS-C is a severe disease and prominent cardiac involvement has been reported in a high proportion of patients affected, requiring an intensive level of care in more than 50% of patients [3, 4]. For this reason, the prompt recognition of potential cardiovascular instability in the ED is crucial for patient care.

The usefulness of point-of-care ultrasound (PoCUS) in assessing adult and pediatric shock has already been reported [5, 6]. During the recent pandemic, PoCUS performed by pediatricians in ED has also been demonstrated as a useful method to detect lung abnormalities in children with MIS-C and COVID-19 [7, 8].

Herein, we describe the PoCUS findings in a case-series of MIS-C patients at ED admission.

Materials and methods

In the ED of our Tertiary Care Pediatric Hospital (Regina Margherita Children’s Hospital -OIRM-, Turin, Italy), bedside PoCUS is routinely performed in high-risk children by experienced pediatricians. Our internal standard PoCUS protocol is derived from Copetti protocol [9, 10] for lung evaluation and from Rapid Ultrasound in SHock (RUSH) protocol [6] for cardiac and abdominal evaluation. Lung evaluation was performed with a linear or curvilinear probe (5–10 MHz) placed perpendicular, oblique and parallel to the ribs in the anterior, lateral and posterior (lower and upper) thorax and sitting positions were used to scan the posterior thorax. For RUSH protocol a curvilinear (2–5 MHz) and a phased array probe (2–8 MHz) were used (MyLab Seven; Esaote, Genoa, Italy).

On the 10th of January 2021, we performed a retrospective analysis of charts of all patients admitted to our ED with symptoms consistent with a presumptive diagnosis of MIS-C and subsequently discharged with a confirmed diagnosis between the 1st of April 2020 and the 31st of December 2020. The diagnosis of MIS-C at admission to the ED is presumptive. The current CDC case definition requires clinical, laboratory and anamnestic findings, without considering imaging features [1, 2].

Data of children who underwent PoCUS within the first 24 h from the admission were collected and retrospectively analyzed.

Archived PoCUS images were blind reviewed by three trained pediatricians with more than 5 years experience in bedside US, and then collegially discussed according to our internal protocol. Regarding lung, the presence of “pleural line irregularities”, “vertical artifacts”, “white lung” and “interstitial syndrome”, “consolidation” and “pleural effusion” was assessed. The interstitial syndrome is characterized by B-lines, arising from one point of the pleural line and from peripheral consolidations spreading down until the edge of the screen without fading [11, 12]. The pattern considered pathologic is the presence of multiple B-lines (at least three between two ribs in one longitudinal scan) fanning out from the lung–wall interface [9, 10, 13]. Regarding cardiac evaluation, we defined “cardiac kinetic alteration” the presence of an abnormal size or contractility status of the left ventricle and/or a relative increase of the size of right ventricle (i.e., hypocontractile hearth) compared to the left ventricle. Both B mode and M-Mode tracing were used to evaluate systolic fractional shortening, according to RUSH protocol [6]. The pericardial sac was visualized to assess the presence of “pericardial effusion”.

The evaluation of inferior caval vein positioning the probe in the epigastric area in a long-axis configuration was used in order to estimate the intravascular volume. A reduced compliance to respiratory cycles (i.e., IVC Sniff Test) was defined as “IVC dilatation”.

Data regarding reasons for ED admission, clinical features including signs and symptoms of cardiovascular involvement and/or shock (capillary refill time > 2 s, cold extremities, hypotension, shortness of breath, severe tachycardia), laboratory data and X-ray imaging findings were collected, too.

The statistical analysis was performed using IBM SPSS statistics package 27.0. A descriptive analysis of the variables was conducted. The data were reported as absolute numbers and percentages for categorical variables while as medians and range for continuous variables.

Results

Between the 1st of April and the 31th December 2020, 40 patients presented to our ED with a high suspicion of MIS-C disease with fever for more than 24 h and presence of laboratory evidence of inflammation or SARS-CoV-2 infection. Twenty-four/40 received alternative diagnosis during hospitalization. The remaining 16 were subsequently discharged with a confirmed diagnosis according to CDC case definition; of these, 11 (69%) underwent PoCUS in the first 24 h from admission in the ED and were enrolled in the study (see Fig. 1).

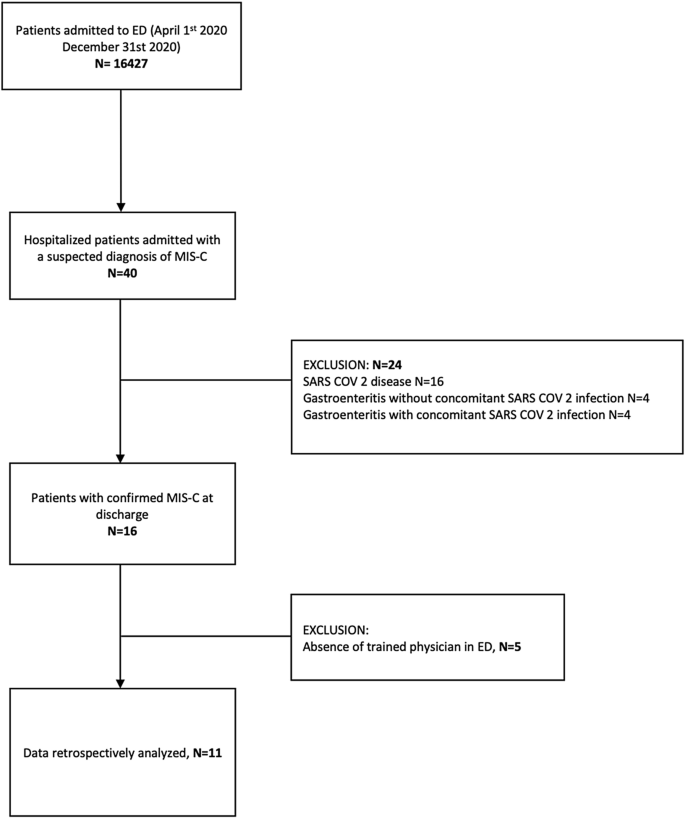

Fig. 1
figure1

Flowchart of patient enrollment and exclusion criteria

Eleven/11 (100%) presented to ED for fever, associated with abdominal pain in 8/11 (73%), vomiting in 6/11 (55%), and Kawasaki-like signs (i.e., mucositis and conjunctivitis) in 3/11 (27%). At admission 10/11 (91%) showed good clinical condition without signs and symptoms suggestive for cardiovascular impairment/shock, with the exception of the only child appearing in critical condition, presenting severe hypotension and requiring admission to intensive care unit. PoCUS showed pathological findings in 11/11 (100%). According to RUSH protocol, cardiac hypokinesis was detected in 5/11 (45%) and inferior vena cava dilatation in 3/11 (27%). Peritoneal fluid was reported in 6/11 cases (54%). Lung ultrasound (LUS) evaluation revealed an interstitial syndrome in 11/11 (100%), mainly localized in posterior basal lung segments. One child appearing in critical condition at admission showed alteration both at LUS and RUSH protocol (Table 1, patient number 3).

Table 1 PoCUS and X-rays findings, reason for ED admission and NT-pro BNP value at admission in children with MIS-C

During hospitalization all children developed cardiac injury with a median NT-pro BNP level of more than 8500 ng/l and pathological findings at echocardiogram. Detailed PoCUS and chest X-ray findings, as well as the first detection of N-terminal pro B-type natriuretic peptide (NT-pro BNP), are reported in Table 1. The five patients (Patient Number 3,4,5,7 and 9, Table 1) with kinetic cardiac alteration displayed a hypocontractile heart confirmed by the ejection fraction measurement at subsequent echocardiogram. Peculiar imaging findings at chest X-ray, LUS and RUSH exam are shown in Fig. 2.

Fig. 2
figure2

Imaging findings: A chest X-ray findings; B LUS exam: B1 initial interstitial pattern, B2 vertical artifacts, B3 white lung; C LUS exam: C1 lung consolidations; C2, C3 lung consolidations with pleural effusion; D RUSH exam: D1 pericardial effusion, D2 dilated cardiac chambers, D3 plethoric IVC

Discussion

Even though the radiographic features of COVID-19 in children have been thoroughly reported [9], data describing imaging findings in MIS-C are limited. Recently, a prospective observational study summarizing chest and abdominal imaging findings has been published [14].

To the best of our knowledge, for the first time we report here a detailed analysis on the PoCUS findings in the ED patients with confirmed MIS-C [7].

In our case-series, PoCUS was performed in 11 children with MIS-C within 24 h from hospitalization. Most patients presented to the ED for fever and abdominal pain in good clinical condition. However, the development of cardiac injury in all children during hospitalization (median NT-pro BNP level of more than 8500 ng/l) is consistent with the already reported clinical instability of MIS-C patients, who are at risk for sudden cardiovascular worsening [4]. For this reason a strict clinical, laboratory and imaging monitoring is strongly recommended.

In our case-series, despite initial fair clinical condition, PoCUS revealed early cardiac hypokinesis in almost half of our patients and IVC dilatation in three [15]. As a consequence, PoCUS allowed early identification of cardiopulmonary involvement, even before the patients developed symptoms suggestive for cardiovascular impairment/shock.

The PoCUS findings also showed abdominal free fluid in more than half of our patients, confirming the frequent involvement of gastrointestinal tract previously described [2, 14].

Children with MIS-C tend to develop a clinical condition of fluid overload due both to contractile cardiac pump deficit and to endotheliitis with subsequent capillary leak syndrome. In this context, the ability of PoCUS to simultaneously explore multiple systems and detect polyserositis promotes adequate therapeutic management of fluid balance.

Finally, all our patients presented at least one alteration at LUS examination, with the predominance of the interstitial pattern, underlying an inflammatory and edemigenous genesis [16]. Furthermore, pathological findings in the X-ray were reported in only 3/11 cases (27%), suggesting its marginal role in the initial evaluation (Fig. 2) [17].

PoCUS has unquestionable advantages: the ability to explore at a first sight the multi-organ involvement typical of MIS-C; the possibility of being performed at any moment by a pediatrician in the ED; and the opportunity to be repeated without any risk during the follow-up.

We are aware of the limits of our study (i.e., the retrospective nature of the analysis and the small sample size). However, if our data will be confirmed by further research on larger samples, PoCUS might be considered as a useful and non-invasive tool in the first evaluation of children with suspected MIS-C, although a specific MIS-C-correlated ultrasound pattern has not been identified. Moreover, it could play a key role to help physicians also in the therapeutic management of fluid balance, as well as in the following monitoring of these pediatric patients, at risk for cardiovascular deterioration.

Availability of data and materials

Not applicable.

Code availability

Not applicable.

Abbreviations

ED:

Emergency department

IVC:

Inferior vena cava

LUS:

Lung US

MIS-C:

Multisystem inflammatory syndrome in children

NT-pro BNP:

N-terminal pro B-type natriuretic peptide

PoCUS:

Point-of-care ultrasound

RUSH:

Rapid Ultrasound in SHock

RT-PCR:

Real-time polymerase chain reaction

US:

Ultrasound

References

  1. 1.

    CDC Health Alert Network. Multisystem inflammatory syndrome in children (MIS-C) associated with coronavirus disease 2019 (COVID-19) 1. HAN archive—00432. Health Alert Network (HAN). https://emergency.cdc.gov/han/2020/han00432.asp. Accessed 24 Aug 2021.

  2. 2.

    Nakra NA, Blumberg DA, Herrera-Guerra A, Lakshminrusimha S (2020) Multi-system inflammatory syndrome in children (MIS-C) following SARS-CoV-2 infection: review of clinical presentation, hypothetical pathogenesis, and proposed management. Children 7:69. https://doi.org/10.3390/children7070069

    Article  PubMed Central  Google Scholar

  3. 3.

    Capone CA, Subramony A, Sweberg T, Schneider J, Shah S, Rubin L et al (2020) Characteristics, cardiac involvement, and outcomes of multisystem inflammatory syndrome of childhood associated with severe acute respiratory syndrome coronavirus 2 infection. J Pediatr 224:141–145. https://doi.org/10.1016/j.jpeds.2020.06.044

    CAS  Article  PubMed  PubMed Central  Google Scholar

  4. 4.

    Valverde I, Singh Y, Sanchez-de-Toledo J, Theocharis P, Chikermane A, Di Filippo S et al (2021) Acute cardiovascular manifestations in 286 children with multisystem inflammatory syndrome associated with COVID-19 infection in Europe. Circulation 143:21–32. https://doi.org/10.1161/CIRCULATIONAHA.120.050065

    CAS  Article  PubMed  Google Scholar

  5. 5.

    Park DB, Presley BC, Cook T, Hayden GE (2015) Point-of-care ultrasound for pediatric shock. Pediatr Emerg Care 31:591–601. https://doi.org/10.1097/PEC.0000000000000519

    Article  PubMed  Google Scholar

  6. 6.

    Perera P, Mailhot T, Riley D, Mandavia D (2010) The RUSH exam: Rapid Ultrasound in SHock in the evaluation of the critically lll. Emerg Med Clin North Am 28:29–56. https://doi.org/10.1016/j.emc.2009.09.010

    Article  PubMed  Google Scholar

  7. 7.

    Kennedy TM, Dessie A, Kessler DO, Malia L, Rabiner JE, Firnberg MT, Ng L (2021) Point-of-care ultrasound findings in multisystem inflammatory syndrome in children: a cross-sectional study. Pediatr Emerg Care 37(6):334–339. https://doi.org/10.1097/PEC.0000000000002410

    Article  PubMed  Google Scholar

  8. 8.

    Giorno EPC, De Paulis M, Sameshima YT, Weerdenburg K, Savoia P, Nanbu DY et al (2020) Point-of-care lung ultrasound imaging in pediatric COVID-19. Ultrasound J. https://doi.org/10.1186/s13089-020-00198-z

    Article  PubMed  PubMed Central  Google Scholar

  9. 9.

    Copetti R, Cattarossi L (2008) Ultrasound diagnosis of pneumonia in children. Radiol Medica 113:190–198. https://doi.org/10.1007/s11547-008-0247-8

    CAS  Article  Google Scholar

  10. 10.

    Soldati G, Copetti R, Sher S (2009) Sonographic interstitial syndrome: the sound of lung water. J Ultrasound Med 28(2):163–174

    Article  Google Scholar

  11. 11.

    Volpicelli G, Gargani L (2020) Sonographic signs and patterns of COVID-19 pneumonia. Ultrasound J 12(1):22. https://doi.org/10.1186/s13089-020-00171-w

    Article  PubMed  PubMed Central  Google Scholar

  12. 12.

    Volpicelli G, Gargani L, Perlini S, Spinelli S, Barbieri G, Lanotte A, Casasola GG, Nogué-Bou R, Lamorte A, Agricola E, Villén T, Deol PS, Nazerian P, Corradi F, Stefanone V, Fraga DN, Navalesi P, Ferre R, Boero E, Martinelli G, Cristoni L, Perani C, Vetrugno L, McDermott C, Miralles-Aguiar F, Secco G, Zattera C, Salinaro F, Grignaschi A, Boccatonda A, Giostra F, Infante MN, Covella M, Ingallina G, Burkert J, Frumento P, Forfori F, Ghiadoni L, on behalf of the International Multicenter Study Group on LUS in COVID-19 (2021) Lung ultrasound for the early diagnosis of COVID-19 pneumonia: an international multicenter study. Intensive Care Med 47(4):444–454. https://doi.org/10.1007/s00134-021-06373-7

    CAS  Article  PubMed  Google Scholar

  13. 13.

    Volpicelli G, Elbarbary M, Blaivas M, Lichtenstein DA, Mathis G, Kirkpatrick AW, Melniker L, Gargani L, Noble VE, Via G, Dean A, Tsung JW, Soldati G, Copetti R, Bouhemad B, Reissig A, Agricola E, Rouby JJ, Arbelot C, Liteplo A, Sargsyan A, Silva F, Hoppmann R, Breitkreutz R, Seibel A, Neri L, Storti E, Petrovic T, International Liaison Committee on Lung Ultrasound (ILC-LUS) for International Consensus Conference on Lung Ultrasound (ICC-LUS) (2012) International evidence-based recommendations for point-of-care lung ultrasound. Intensive Care Med 38(4):577–591. https://doi.org/10.1007/s00134-012-2513-4

    Article  PubMed  Google Scholar

  14. 14.

    Hameed S, Elbaaly H, Reid CEL, Santos RMF, Shivamurthy V, Wong J et al (2020) Spectrum of imaging findings at chest radiography, US, CT, and MRI in multisystem inflammatory syndrome in children associated with COVID-19. Radiology 298:E1–E10. https://doi.org/10.1148/RADIOL.2020202543

    Article  PubMed  Google Scholar

  15. 15.

    Labovitz AJ, Noble VE, Bierig M, Goldstein SA, Jones R, Kort S et al (2010) Focused cardiac ultrasound in the emergent setting: a consensus statement of the American society of Echocardiography and American College of Emergency Physicians. J Am Soc Echocardiogr 23:1225–1230. https://doi.org/10.1016/j.echo.2010.10.005

    Article  PubMed  Google Scholar

  16. 16.

    Salehi S, Abedi A, Balakrishnan S, Gholamrezanezhad A (2020) Coronavirus disease 2019 (COVID-19): a systematic review of imaging findings in 919 patients. Am J Roentgenol 215:87–93. https://doi.org/10.2214/AJR.20.23034

    Article  Google Scholar

  17. 17.

    Rostad BS, Shah JH, Rostad CA, Jaggi P, Richer EJ, Linam LE et al (2021) Chest radiograph features of multisystem inflammatory syndrome in children (MIS-C) compared to pediatric COVID-19. Pediatr Radiol. https://doi.org/10.1007/s00247-020-04921-9

    Article  PubMed  PubMed Central  Google Scholar
